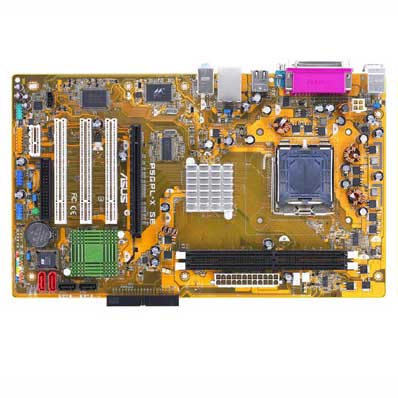

Carte mère ASUS P5GPL-X SE

Présentation :

Socket 775 - Chipset Intel 915PL - 800 MHz FSB - 2x DDR400 - PCI Express - SATA - 6 channel audio - GLAN - USB 2.0 - ATX


Caractéristiques :

    ASUS P5GPL-X SE
  • CPU
     LGA775 socket for Intel® Pentium 4/Celeron CPU
     Compatible with Intel® 04B, 04A processors
     Support Intel® single-core 65nm intel® Pentium® 4/ Celeron® processors.
     (Refer to support.asus.com for CPU support list)
     Intel® Hyper-Threading Technology ready
     Support Intel EM64T and EIST technology
  • Chipset
     Intel 915PL
     Intel ICH6
     Front Side Bus 800 / 533 MHz
  • Mémoire
     Dual channel memory architecture
     2 x 184-pin DIMM Sockets support max. 2GB DDR 400/333 non-ECC memory
     ASUS Hyper Path2
     (Note: Due to chipset limitation, this motherboard supports a maximum of 2GB total memory)
  • Slots
     1 x PCI Express x16 slot
     1 x PCI Express x1
     3 x PCI
  • Storage
     Intel ICH6 South Bridge:
     1 x UltraDMA 100/66/33
     4 x Serial ATA
  • LAN
     Marvell 88E8001 Gigabit LAN Controller
  • Audio
     ADI 1986A High Definition Audio 6-channel CODEC S/PDIF out on back I/O port
  • USB
     Max. 8 USB 2.0 ports
  • Overclocking Features
     AI Overclocking (intelligent CPU frequency tuner)
     ASUS CPU Lock Free Technology
     ASUS Hyper Path2
     SFS (Stepless Frequency Selection) from 100MHz up to 400MHz at 1MHz increment
     Adjustable FSB/DDR ratio. Fixed PCI/PCI-E frequencies.
     ASUS C.P.R.(CPU Parameter Recall)
  • Special Features
     CrashFree BIOS 2
     ASUS EZ Flash
     MyLogo
     Q-Fan
  • BIOS
     4 Mb Flash ROM,AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3
  • Connecteurs d'E/S arrières
     Ports 1 x Parallel
     1 x Serial
     1 x S/PDIF Output
     1 x PS/2 Keyboard
     1 x PS/2 Mouse
     1 x 6-Channel Audio I/O
     1 x RJ45
     4 x USB 2.0/1.1
  • Connecteurs d'E/S internes
     2 x USB 2.0 connector supports additional 4 USB ports
     CPU / Chassis Fan connectors
     4 x SATA connector
     1 x IDE connector
     Chassis Intrusion
     CD audio in
     24-pin EATX Power connector
     1 x S/PDIF out connector
     Front panel audio connector
     4-pin ATX 12V Power connector
     Game/MIDI connector
     System panel connector
     Manageability  WOL by PME,WOR by PME, Chassis Intrusion,PXE
  • CD support
     Drivers
     ASUS PC Probe
     ASUS LiveUpdate Utility
     Anti-virus software (OEM version)
  • Accessoires
     User's manual
     1 x Serial ATA cable
     1 x SATA power cable
     1 x UltraDMA 100/66 cable
     1 x FDD cable
     1 x I/O shield
  • Dimension
     ATX Form Factor, 12"x 7.2"(30.5cm x 18.3cm)



Détails :

Marque  : ASUS
Code EAN  : 4719543136317
