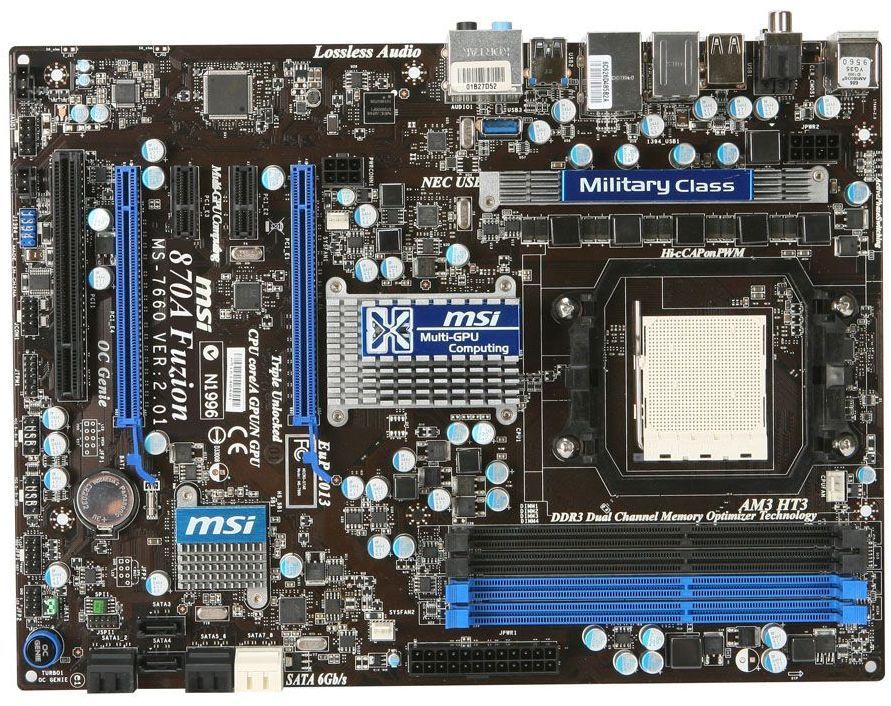

MSI CARTE MERE 870A FUZION

Présentation :

ATX - AMD 770 - Socket AM3 - SATA-300 (RAID), SATA-600 (RAID) - Gigabit Ethernet - FireWire - SuperSpeed USB - audio haute définition (8 canaux)


Caractéristiques :

  • Type de Produit : Carte-mère
  • Facteur de forme : ATX
  • Largeur : 30.5 cm
  • Profondeur : 22.5 cm
  • Processeurs Compatibles : Sempron, Phenom II X3, Athlon II X2, Phenom II X2, Athlon II X4, Athlon II X3, Phenom II X4, Phenom II X6
  • Compatibilité des processeurs 64 bits : Oui
  • Port du Processeur : Socket AM3
  • Prise en charge technologie multicoeur : Double-coeur / Triple-coeur / Quadruple-coeur / Six coeurs
  • Jeu de puces : AMD 770 / AMD SB710
  • Vitesse max. du bus : 2600 MHz
  • Contrôleur Stockage : Serial ATA-300 (RAID), Serial ATA-600 (RAID)
  • Connecteurs d'alimentation : Connecteur d'alimentation auxiliaire 6 broches, connecteur d'alimentation auxiliaire 24 broches, connecteur ATX12V 8 broches
  • Processeur Qté installée (max. pris en charge) : 0 ( 1 )
  • Technologie RAM prise en charge : DDR3 SDRAM
  • Supported RAM (Registered or Buffered) : Mémoire sans tampon
  • RAM installée (max.) : 0 Mo / 16 Go (maximum)
  • Vitesse de RAM prise en charge : PC3-10600, PC3-8500
  • Sortie audio : Carte son
  • Audio Codec : Realtek ALC892
  • Mode de sortie audio : Surround 7.1 canaux
  • Conformité aux normes : High Definition Audio
  • Réseaux : Adaptateur réseau - Realtek RTL8111E - Ethernet, Fast Ethernet, Gigabit Ethernet
  • Fonctions du BIOS : M-Flash, Unlock CPU Core
  • Caractéristiques matérielles : AMD Cool 'n' Quiet Technology, MSI Winki, USB Safeguard, USB 3.0, technologie audio jack-detect, prise en charge de la technologie ATI CrossFireX, MSI Active Phase Switching (APS), Auto OC Genie, MSI Military Class, MSI Fuzion Technology
  • Logements pour extensions : 1 processeur - Socket AM3 4 mémoire ( 1.5 V ) - DIMM 240 broches 2 PCI Express 2.0 x16 2 PCI Express x1 1 PCI ( 3.3 V/ 5 V )
  • Interfaces de stockage : AMD SB710 : Serial ATA-300 - connecteur(s) : 6 ATA série 7 broches - 6 appareil(s) - RAID 0 / RAID 1 / RAID 10 Marvell 88SE9128 : Serial ATA-600 - connecteur(s) : 2 x 7pin Serial ATA - 2 appareil(s) - RAID 0 / RAID 1
  • Interfaces : 1 x clavier - générique - mini-DIN 6 broches (style PS/2) 1 x souris - générique - mini-DIN 6 broches (style PS/2) 1 x audio - sortie SPDIF - RCA 1 x audio - SPDIF - TOSLINK 1 x IEEE 1394 (FireWire) 6 x Hi-Speed USB - USB à 4 broches, type A 1 x SuperSpeed USB - USB à 9 broches Type A 1 x réseau - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x audio - ligne de sortie - fiche mini-phone Stéréo 3,5 mm 1 x audio - ligne d'entrée - fiche mini-phone Stéréo 3,5 mm 1 x microphone - entrée - mini-téléphone 3,5 mm 1 x audio - sortie de ligne (surround latéral) - fiche mini-phone Stéréo 3,5 mm 1 x audio - sortie (arrière) - fiche mini-phone Stéréo 3,5 mm 1 x audio - sortie ligne (central/caisson de basses) - fiche mini-phone Mono 3,5 mm
  • Connecteurs additionnels (en option) : 4 x Hi-Speed USB, 1 x IEEE 1394 (FireWire)
  • Câbles inclus : 2 x câble série ATA



Détails :

Marque  : MSI
Code EAN  : 4719072171032
