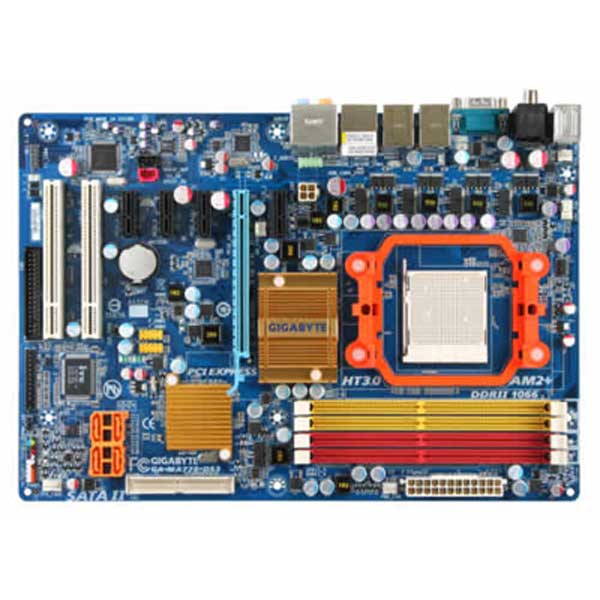

Carte mère GIGABYTE GA-MA770-DS3

Présentation :

Socket AM2+ - Chipset AMD 770 - 4x DDR2 - PCI Express 16x - SATA II - Audio 7.1 - GLAN - FireWire - ATX


Caractéristiques :

    GIGABYTE GA-MA770-DS3
  • Processeur- Support for Socket AM2+/ AM2 processors: AMD Phenom?FX processor/ AMD Phenom? processor/ AMD Athlon? 64 FX processor/AMD Athlon? 64 X2 Dual-Core processor/AMD Athlon? 64 processor/AMD Sempron? processor
  • Chipset - North Bridge: AMD 770 - South Bridge: AMD SB600
  • Mémoire- 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory - Dual channel memory architecture - Support for DDR2 1066 (Note 2)/800/667 MHz memory modules
  • Slots d'extensions- 1 x PCI Express x16 slot (The PCI Express x16 slot conforms to PCI Express 2.0 standard.) - 4 x PCI Express x1 slots - 2 x PCI slots
  • Connecteurs E/S internes- 1 x 24-pin ATX main power connector - 1 x 4-pin ATX 12V power connector - 1 x floppy disk drive connector - 1 x IDE connector - 4 x SATA 3Gb/s connectors - 1 x CPU fan header - 2 x system fan headers - 1 x power fan header - 1 x North Bridge fan header - 1 x front panel header - 1 x front panel audio header - 1 x CD In connector - 1 x S/PDIF In header - 1 x S/PDIF Out header - 2 x USB 2.0/1.1 headers - 1 x IEEE 1394a header - 1 x parallel port header - 1 x power LED header - 1 x chassis intrusion header
  • Ports E/S à l´arrière- 1 x PS/2 keyboard port - 1 x PS/2 mouse port - 1 x coaxial S/PDIF Out connector - 1 x optical S/PDIF Out connector - 1 x serial port - 6 x USB 2.0/1.1 ports - 2 x IEEE 1394a ports - 1 x RJ-45 port - 6 x audio jacks
  • Audio - Realtek ALC888 codec - High Definition Audio - 2/4/5.1/7.1-channel - Support for S/PDIF In/Out - Support for CD In
  • LAN - Realtek 8111B chip (10/100/1000 Mbit)
  • USB - Integrated in the South Bridge - Up to 10 USB 2.0/1.1 ports (6 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • BIOS - 1 x 4 Mbit flash - Use of licensed AWARD BIOS - PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Facteur de forme- ATX Form Factor; 30.5cm x 21.0cm



Détails :

Marque  : GIGABYTE
Code EAN  : 4719331845131
