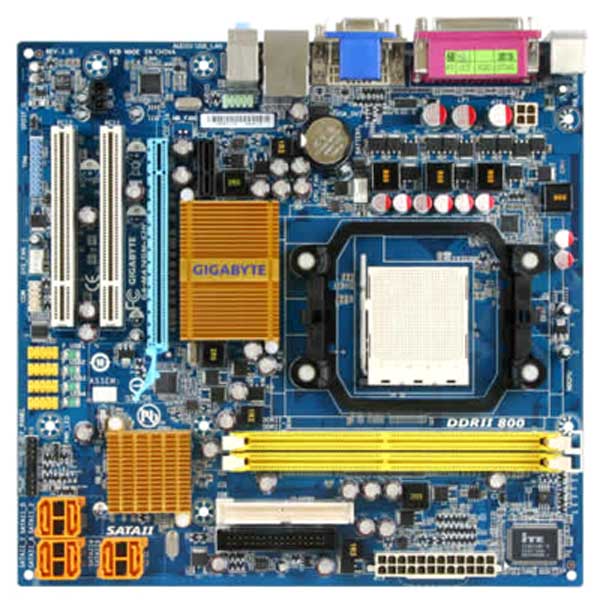

Carte mère GIGABYTE GA-MA74GM-S2H

Présentation :

Socket AM2+ - Chipset AMD 740G - 2x DDR2 - PCI Express 16x - SATA II - Audio 7.1 - GLAN - VGA/HDMI - µATX


Caractéristiques :

    GIGABYTE GA-MA74GM-S2H
  • Processeur supporté :
     - Socket AM2+/ AM2 processors: AMD Phenom?FX processor/ AMD Phenom? processor/ AMD Athlon? 64 FX processor/AMD Athlon? 64 X2 Dual-Core processor/AMD Athlon? 64 processor/AMD Sempron? processor
  • Chipset :
     - North Bridge: AMD 740G
     - South Bridge: AMD SB700
  • Mémoire :
     - 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
     - Dual channel memory architecture
     - Support for DDR2 800/667 MHz memory modules
  • Slots d'extension :
     - 1 x PCI Express x16 slot
     - 1 x PCI Express x1 slot
     - 2 x PCI slots
  • Stockage :
     - 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
     - 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
     - Support for SATA RAID 0, RAID 1 and RAID 10
     - 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • Connecteurs internes :
     - 1 x 24-pin ATX main power connector
     - 1 x 4-pin ATX 12V power connector
     - 1 x floppy disk drive connector
     - 1 x IDE connector
     - 6 x SATA 3Gb/s connectors
     - 1 x CPU fan header
     - 1 x system fan header
     - 1 x front panel header
     - 1 x front panel audio header
     - 1 x CD In connector
     - 1 x S/PDIF Out header
     - 4 x USB 2.0/1.1 headers
     - 1 x Serial port header
     - 1 x Trusted Platform Module (TPM) header
     - 1 x chassis intrusion header
     - 1 x power LED header
  • Connecteurs E/S à l'arrière :
     - 1 x PS/2 keyboard port
     - 1 x Parallel port
     - 1 x D-Sub port
     - 1 x DVI-D port (Note 3)
     - 1 x HDMI port
     - 1 x optical S/PDIF Out connector
     - 4 x USB 2.0/1.1 ports
     - 1 x RJ-45 port
     - 3 x audio jacks (Line In/Line Out/Microphone)
  • LAN :
     - Realtek 8111C chip (10/100/1000 Mbit)
  • Audio
     - Realtek ALC888 codec
     - High Definition Audio
     - 2/4/5.1/7.1-channel (Note 2)
     - Support for S/PDIF Out
     - Support for CD In
  • USB :
     -Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)
  • BIOS :
     - 1 x 8 Mbit flash
     - Use of licensed AWARD BIOS
     - PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Format et dimension :
     - Micro ATX Form Factor; 24.4cm x 23.4cm



Détails :

Marque  : GIGABYTE
Code EAN  :
