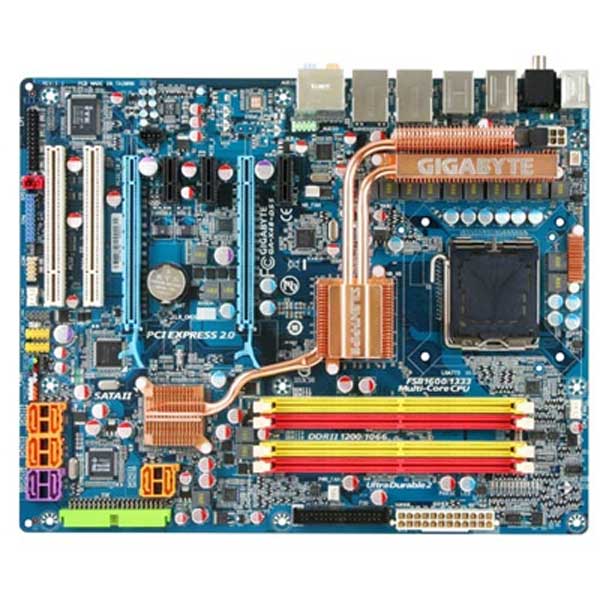

Carte mère GIGABYTE GA-X48-DS5

Présentation :

Socket 775 - Chipset Intel® X48 - Supporte Core 2 Quad - 4x DDR2 - 2x PCI Express x16 - SATAII - Audio 7.1 - GLAN - FireWire - ATX


Caractéristiques :

    GIGABYTE GA-X48-DS5
  • Processeur
     - Support for an Intel® Core? 2 Extreme processor/ Intel® Core? 2 Quad processor/Intel® Core? 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package (Go to GIGABYTE's website for the latest CPU support list.)
     - L2 cache varies with CPU
     - 1600/1333/1066/800 MHz FSB
  • Chipset
     - North Bridge: Intel® X48 Chipset
     - South Bridge: Intel® ICH9R
  • Mémoire
     - 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory
     - Dual channel memory architecture
     - Support for DDR2 1200/1066/800/667MHz, ECC, non ECC memory modules.
  • Audio
     - Realtek ALC889A codec
     - High Definition Audio
     - 2/4/5.1/7.1-channel
     - Support for DTS (dts NEO:PC)
     - Support for S/PDIF In/Out
     - Support for CD In
  • LAN
     - Realtek 8111C chip (10/100/1000 Mbit)
  • Slots d'extensions
     - 2 x PCI Express x16 slots (The PCIE_16_1 slot supports x16; the PCIE_16_2 supports x4.)
     - 3 x PCI Express x1 slots (share with the PCIE_16_2 slot)
     - 2 x PCI slots
  • USB
     - Up to 12 USB 2.0/1.1 ports
  • Connecteurs E/S internes
     - 1 x 24-pin ATX main power connector
     - 1 x 8-pin ATX 12V power connector
     - 1 x 4-pin PCIe 12V power connector
     - 1 x floppy disk drive connector
     - 1 x IDE connector
     - 8 x SATA 3Gb/s connectors
     - 1 x CPU fan header
     - 2 x system fan headers
     - 1 x power fan header
     - 1 x North Bridge fan header
     - 1 x front panel header
     - 1 x front panel audio header
     - 1 x CD In connector
     - 1 x S/PDIF In header
     - 1 x S/PDIF Out header
     - 2 x USB 2.0/1.1 headers
     - 1 x IEEE 1394a header
     - 1 x parallel port header
     - 1 x serial port header
     - 1 x power LED header
     - 1 x chassis intrusion header
  • Ports E/S à l´arrière
     - 1 x PS/2 keyboard port
     - 1 x PS/2 mouse port
     - 1 x coaxial S/PDIF Out connector
     - 1 x optical S/PDIF Out connector
     - 8 x USB 2.0/1.1 ports
     - 2 x IEEE 1394a ports
     - 2 x RJ-45 port
     - 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • BIOS
     - Supports DualBIOS Plus
     - 2 x 8 Mbit flash ROM
     - Use of licensed AWARD BIOS
     - PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b.
  • Facteur de forme
     - ATX Form Factor; 30.5cm x 24.4cm



Détails :

Marque  : GIGABYTE
Code EAN  : 4719331849139
