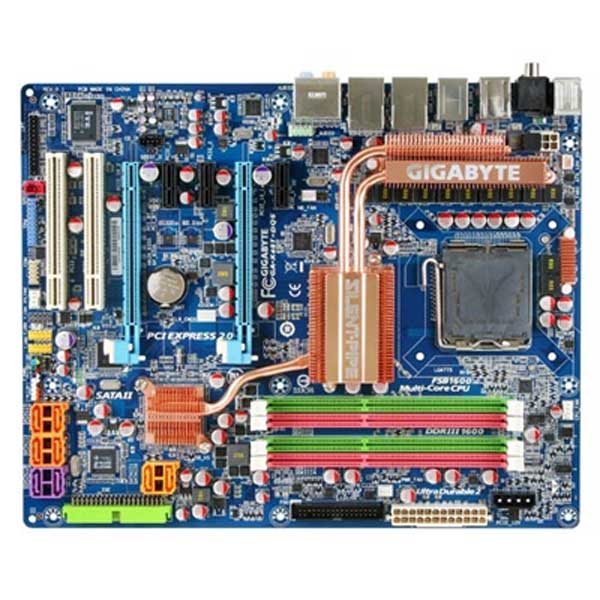

Carte mère GIGABYTE GA-X48T-DQ6
Présentation :
Socket 775 - Chipset Intel® X48 - Supporte Core 2 Quad - 4x DDR3 - 2x PCI Express x16 - SATAII - Audio 7.1 - 2x GLAN - 2x FireWire - ATX
Caractéristiques :
GIGABYTE GA-X48T-DQ6
- Processeur
- Support for an Intel® Core? 2 Extreme processor/ Intel® Core? 2 Quad processor/Intel® Core? 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package (Go to GIGABYTE's website for the latest CPU support list.)
- L2 cache varies with CPU
- 1600/1333/1066/800 MHz FSB
- Chipset
- North Bridge: Intel® X48 Chipset
- South Bridge: Intel® ICH9R
- Mémoire
- 4 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
- Dual channel memory architecture
- Support for DDR2 1900/1600/1333/1066/800/MHz, XMP memory modules.
- Audio
- Realtek ALC889A codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for DTS (dts NEO:PC)
- Support for S/PDIF In/Out
- Support for CD In
- LAN
- Realtek 8111C chip (10/100/1000 Mbit)
- Slots d´extension
- 2 x PCI Express x16 slots (The PCIE_16_1 slot supports x16; the PCIE_16_2 supports x4.)
- 3 x PCI Express x1 slots (share with the PCIE_16_2 slot)
- 2 x PCI slots
- Ports E/S à l´arrière
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x coaxial S/PDIF Out connector
- 1 x optical S/PDIF Out connector
- 8 x USB 2.0/1.1 ports
- 2 x IEEE 1394a ports
- 2 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
- BIOS
- Supports QuadBIOS
- 2 x 8 Mbit flash ROM
- Use of licensed AWARD BIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b.
- Facteur de forme
- ATX Form Factor; 30.5cm x 24.4cm
Détails :
| Marque |
: GIGABYTE |
| Code EAN |
: 4719331844059 |
