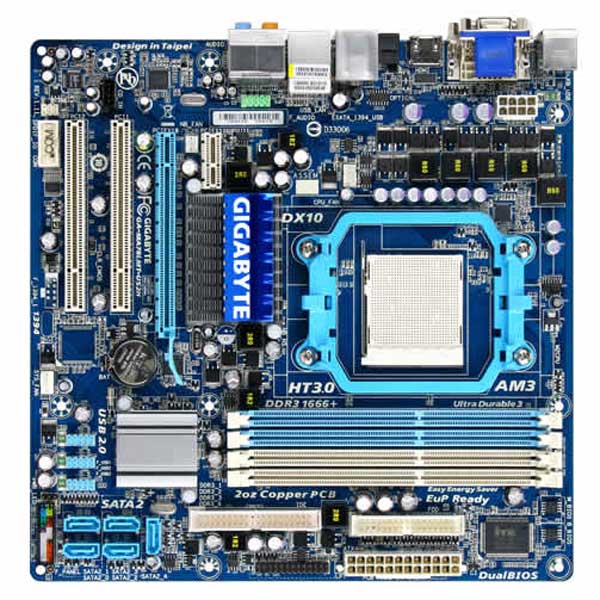

Carte mère GIGABYTE GA-MA78LMT-US2H

Présentation :

Socket AM3 - Chipset AMD 760G - 2600MHz FSB - 4x DDR3 - PCI Express 16x - SATA II - Audio 7.1 - GLAN - HDMI - eSATA - Micro ATX


Caractéristiques :

  • Processeur : Support for AM3 processors: AMD PhenomTM II processor/ AMD Athlon II processor
  • Hyper Transport Bus : 5200 MT/s
  • Chipset : North Bridge: AMD 760G - South Bridge: AMD SB710
  • Mémoire :   4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)  Dual channel memory architecture  Support for DDR3 1666(OC)/1333/1066 MHz memory modules
  • Graphique :   Integrated in the North Bridge:  1 x D-Sub port  1 x DVI-D port (Note 2) (Note 3)  1 x HDMI port (Note 3)
  • Audio :    Realtek ALC888B codec   High Definition Audio   2/4/5.1/7.1-channel   Support for S/PDIF In/Out   Support for CD In
  • LAN : Realtek 8111D chip (10/100/1000 Mbit)
  • Slots d'extension :   1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)  1 x PCI Express x1 slot  2 x PCI slots
  • Storage :    South Bridge:        1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices        5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices        1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device        Support for SATA RAID 0, RAID 1, RAID 10 and JBOD   iTE IT8718 chip:        1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB :     Integrated in the South Bridge:    Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
  • Connecteurs I/O internes :   1. 1 x 24-pin ATX main power connector  1 x 8-pin ATX 12V power connector  1 x floppy disk drive connector  1 x IDE connector  5 x SATA 3Gb/s connectors  1 x CPU fan header  1 x system fan header  1 x North Bridge fan header  1 x front panel header  1 x front panel audio header  1 x CD In connector  1 x S/PDIF In/Out header  3 x USB 2.0/1.1 headers  1 x parallel port header  1 x serial port header  1 x chassis intrusion header  1 x power LED header  1 x clearing CMOS jumper
  • Connecteurs I/O externes :   1 x PS/2 keyboard port or PS/2 mouse port  1 x D-Sub port  1 x DVI-D port (Note 3)(Note 4)  1 x HDMI port (Note 4)  1 x optical S/PDIF Out connector  1 x eSATA 3Gb/s port  6 x USB 2.0/1.1 ports  1 x RJ-45 port  6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • Format et dimensions :   Micro ATX Form Factor  24.3cm x 24.3cm



Détails :

Marque  : GIGABYTE
Code EAN  :
