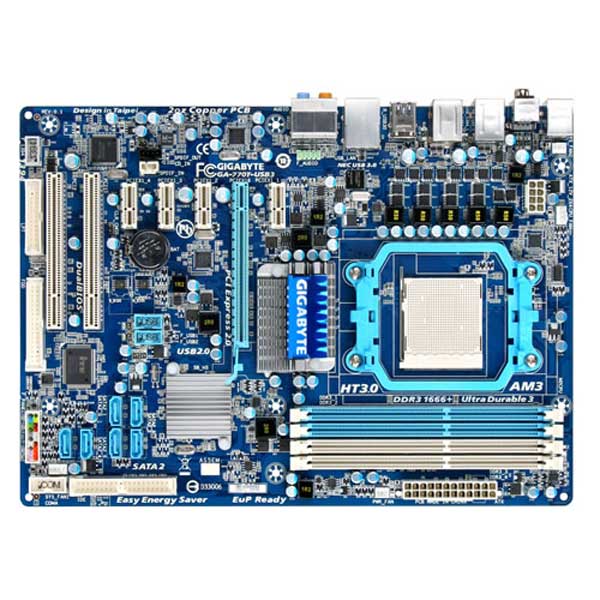

Carte mère GIGABYTE GA-770T-USB3

Présentation :

Socket AM3 - Chipset AMD 770 - 2600 MHz FSB - 4x DDR3 - PCI Express 16x - SATA II - Audio 7.1 - GLAN - USB 3.0 - ATX


Caractéristiques :

  • Processeur : Support for AM3 processors: AMD Phenom? II processor/ AMD Athlon? II processor
  • FSB : 5200 MT/s
  • Chipset :   North Bridge: AMD 770  South Bridge: AMD SB710
  • Mémoire :    4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note2)   Dual channel memory architecture   Support for DDR3 1666(OC)/1333/1066 MHz memory modules   Support ECC memory (Note 2)
  • Audio :   Realtek ALC888 codec  High Definition Audio  2/4/5.1/7.1-channel  Support for S/PDIF In/Out  Support for CD In
  • LAN : Realtek 8111D chip (10/100/1000 Mbit)
  • Slots d'extension :   1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)  4 x PCI Express x1 slots  2 x PCI slots
  • Storage :   South Bridge:    1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices    6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices    Support for SATA RAID 0, RAID 1, RAID 10 and JBOD    iTE IT8720 chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • IEEE 1394 : Up to 3 IEEE 1394a ports
  • USB : Up to 12 USB 2.0/1.1 ports - Up to 2 USB3.0 ports on the back panel
  • Connecteurs internes :   1 x 24-pin ATX main power connector  1 x 8-pin ATX 12V power connector  1 x floppy disk drive connector  1 x IDE connector  6 x SATA 3Gb/s connectors  1 x CPU fan header  2 x system fan headers  1 x power fan header  1 x front panel header  1 x front panel audio header  1 x CD In connector  1 x S/PDIF In header  1 x S/PDIF Out header  2 x USB 2.0/1.1 headers  1 x IEEE 1394a header  1 x parallel port header  1 x serial port header  1 x clearing CMOS jumper
  • Connecteurs externes :   1 x PS/2 keyboard port  1 x PS/2 mouse port  1 x coaxial S/PDIF Out connector  1 x optical S/PDIF Out connector  6 x USB 2.0/1.1 ports  2 x USB 3.0/2.0 ports  2 x IEEE 1394a ports  1 x RJ-45 port  6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • Format : ATX (30.5cm x 22.0cm)



Détails :

Marque  : GIGABYTE
Code EAN  : 4719331853044
