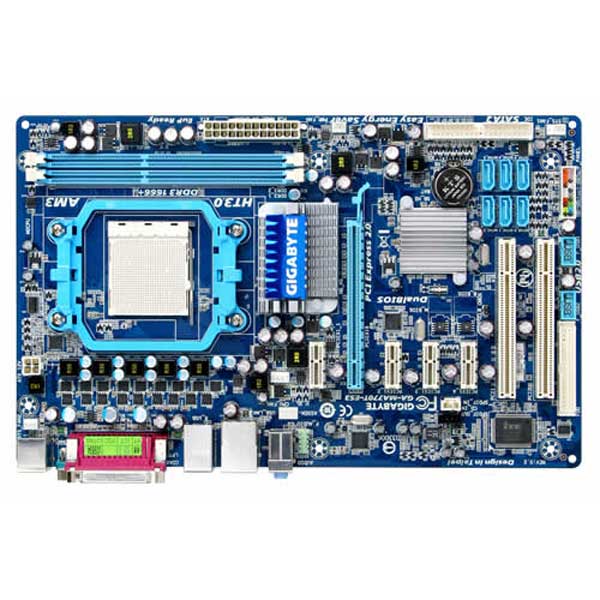

Carte mère GIGABYTE GA-MA770T-ES3

Présentation :

Socket AM3 - Chipset AMD 770 - 2600 MHz FSB - 2x DDR3 - PCI Express 16x - SATA II - Audio 7.1 - GLAN - ATX


Caractéristiques :

  • Processeur : Support for AM3 processors: AMD Phenom? II processor/ AMD Athlon? II processor
  • FSB : 5200 MT/s
  • Chipset   North Bridge: AMD 770   South Bridge: AMD SB710
  • Mémoire   2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note1)   Dual channel memory architecture   Support for DDR3 1666(OC)/1333/1066 MHz memory modules   Support ECC memory modules (Note 2)
  • Audio   Realtek ALC888 codec   High Definition Audio   2/4/5.1/7.1-channel (Note 3)   Support for S/PDIF In/Out   Support for CD In
  • LAN   Realtek 8111D chip (10/100/1000 Mbit)
  • Expansion Slots   1 x PCI Express x16 slot, running at x16 (PCIE_16)  4 x PCI Express x1 slots   2 x PCI slots
  • Storage    1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices   6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices   Support for SATA RAID 0, RAID 1 and RAID 0+1   iTE IT8720 chip: 1x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB    Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
  • Connecteurs internes   1 x 24-pin ATX main power connector   1 x 4-pin ATX 12V power connector   1 x floppy disk drive connector   1 x IDE connector   6 x SATA 3Gb/s connectors   1 x CPU fan header   2 x system fan headers   1 x power fan header   1 x front panel header   1 x front panel audio header   1 x CD In connector   1 x S/PDIF In header   1 x S/PDIF Out header   2 x USB 2.0/1.1 headers   1 x clearing CMOS jumper
  • Connecteurs externes   1 x PS/2 keyboard port or PS/2 mouse port   1 x parallel port   1 x serial port   1 x coaxial S/PDIF Out connector   8 x USB 2.0/1.1 ports   1 x RJ-45 port   3 x audio jacks (Line In/Line Out/Microphone)
  • Format ATX (30.5cm x 19.0cm)



Détails :

Marque  : GIGABYTE
Code EAN  :
