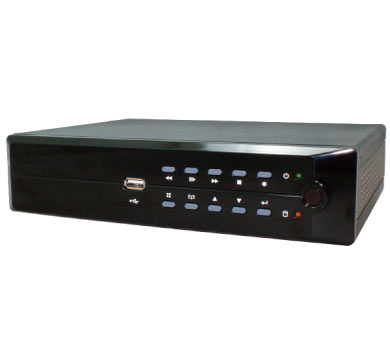

REKO-4DA - DVR 4 voies Compreeion H264 Sans Ventil

Présentation :

Enregistreur numérique autonome - Entrée video : 4 voies BNC, Batterie Intégrée


Caractéristiques :


  •


      Models

      REKON-4DA

      REKON-8DA


      VIDEO


      System
      NTSC/PAL (Auto Detection)


      Compression
      H.264


      Input
      BNC x 4
      BNC x 8


      Output
      Video Out(RCA) x 1, VGA x 1


      Display Frame Rate
      120/100 fps
      240/200 fps


      Display Resolution
      720 x 480 / 720 x 576 (NTSC / PAL), VGA: 1280 x 1024


      Display Mode
      1 / 4 / Sequence / PIP
      1 / 4 / 1+5 / 1+7 / 9 /Sequence / PIP


      AUDIO


      Audio In / Out
      1 / 1


      RECORDING / PLAYBACK


      Recording Resolution(NTSC / PAL)
      D1: 720x480 / 720x576, Half D1: 720x240 / 720x288, CIF: 360x240 / 360x288


      Recording Rate(NTSC / PAL)
      D1: 60 / 50 fpsHalf D1:120 / 100 fpsCIF: 120 / 100 fps
      D1: 60 / 50 fpsHalf D1:120 / 100 fpsCIF: 240 / 200 fps


      Recording Mode
      Time (Continuous) / Motion Detection / Sensor / Motion & Sensor


      Playback
      Search by Time / Event / Calendar


      SENSOR / ALARM


      Sensor / Alarm
      4 / 1(Optional)
      NO


      STORAGE / BACKUP


      Storage Support
      SATA HDD x 1


      Backup Device
      USB Stick


      CONNECTOR


      USB
      USB 2.0 Port x 1


      Mouse
      USB Mouse Port x 1


      IR Extender
      IR Jack and Cable (Optional)


      OSD / CONTROL


      GUI / Control Interface
      YES / Mouse, Keypad, IR Remote Controller(Optional)


      Multilingual Menu
      YES


      Access Authentication
      YES


      PIP
      YES, ON/OFF


      Channel Swap
      Yes, via Mouse Drag-and-Drop


      PTZ control
      Yes, RS485, Via Mouse or Keyboard


      Firmware Upgrade
      USB / Network


      NETWORK


      Network
      10/100 Ethernet (RJ-45)


      Network Protocol
      TCP/IP, Static IP, DHCP, PPPoE(ADSL), DDNS


      Network Remote
      Client Program and IE Browser


      Multilingual OSD
      YES


      3G Mobile Viewing
      YES


      E-mail Notification
      YES


      OTHER INFO


      Power Supply
      Input: AC100~240V 50/60Hz, Output: DC12V


      Operating Temperature
      5°C~45°C


      Dimension(WxHxD cm)
      24.0cm x 5.5cm x 19.8cm






Détails :

Marque  : CCTV
Code EAN  :
