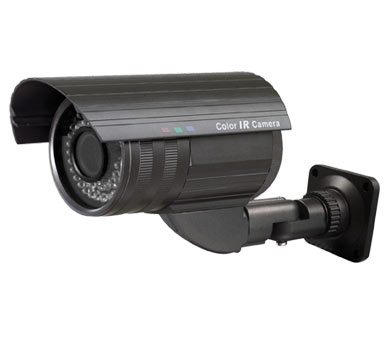

CCD-IS89I/30MTN - Caméra couleur infrarouge

Présentation :

Caméra couleur - Infrarouge 30m -1/3" SONY Super HAD IICCD - 4-9mm/Vari-Focale - Menu OSD - Résolution: 600 TVL -IP66 PIED / 3 Axes


Caractéristiques :



  •

      MODEL

      CCD-IS89I/30MTN


      Pick-up device
      1/3" SONY Super HAD II CCD


      Effective pixels
      NTSC:768 x 494,PAL:752 x 582


      Resolution
      Color 600TVL


      Min. illumination
      0lux (IR on)


      Sync system
      Internal


      Scan system
      2:1 interlace


      S/N ratio
      more than 50dB


      Lens
      4-9mm manual


      Angle of view
      98?-38?


      Electronic shutter
      Auto/ Anti-flicker/ Manual


      Digital WDR
      Off/On (0-63 level adjustable)


      BLC
      HLC/ BLC/ OFF


      White balance
      ATW1/ ATW2/ MANUAL/ FIXED


      2DNR
      OFF/ON


      Day&Night
      Auto/ B/W/ Color/ EXT


      Motion detection
      Off/On (4 areas)


      Privacy zones
      Off/On (8 areas)


      Mirror function
      Off/On (Horizontal mirror)


      Image adjustment
      Contrast, Sharpness, Saturation


      AGC
      High/ Mid/ Low/ Off


      Gamma
      0.45/Custom (0.05-1.0)


      RS-485 control
      Protocal:Pelco-D, Pelco-P, Nextchip Baud rate:2400-57600


      Display mode
      CRT/ LCD/ USER


      OSD menu
      Simplified Chinese/ English


      Video output
      1.0Vp-p Composite Video Output, 75 Ohm


      IR distance
      20-30m (IR leds: 36~?³5)


      Power supply
      DC12V} 10%


      Power consumption(Max)
      200mA/450mA (IR on)


      Operation temp.
      -20?C ~ 50?C





Détails :

Marque  : CCTV
Code EAN  :
