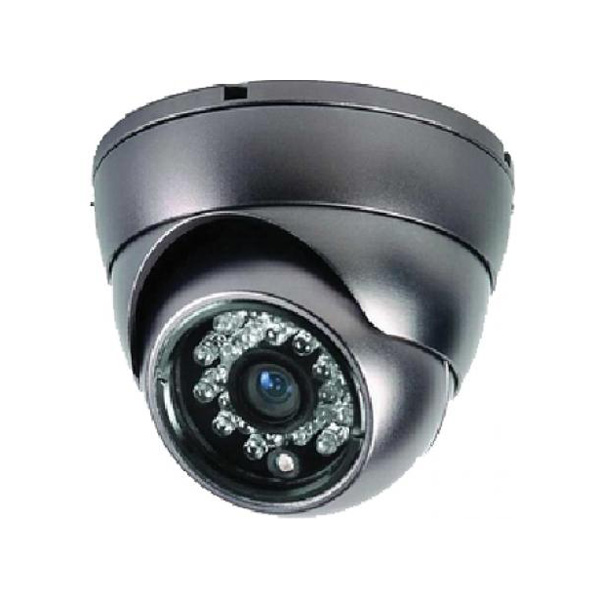

CCD-ID90A/15MT - Caméra Dôme 700 TVL couleurs IR

Présentation :

Caméra Dôme couleur - Infrarouge : 15m - 1/3" SONY Super HAD II CCD - Objectif : 3.6/6mm M12 - Résolution : 700 TVL - Sortie video: B


Caractéristiques :


  •



      MODEL


      CCD-ID90A/15MT


      Pick-up device
      1/3" SONY EX-view HAD II CCD (960H)


      Effective pixels
      NTSC: 976x494, PAL: 976x582


      Resolution
      Color 700TVL


      Min.illumination
      Color 0Lux


      Scan system
      2:1 interlace


      S/N ratio
      more than 50dB


      Lens
      3.6mm M12


      Angle of view
      90°


      Electronic shutter
      Auto


      White balance
      ATW


      Day&Night
      AUTO


      Gamma
      0.45(Default)


      Video output
      1.0Vp-p Composite Video Output, 75 Ohm


      IR distance
      10-15 m(24xÖ5)


      Power supply
      DC12V± 10%


      Power consumption(Max)
      400mA/DC12V(IR on)


      Operation temp
      -20°C ~ 50°C






Détails :

Marque  : CCTV
Code EAN  :
