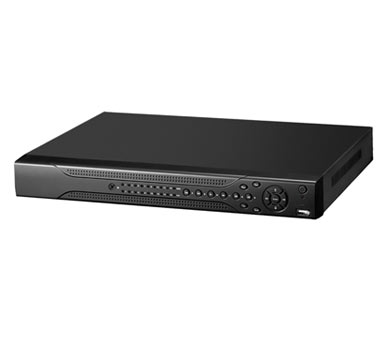

DVR3508HFA/D1SLIM - DVR - 8 voies Affichage 1080P

Présentation :

Enregistreur numrique autonome - Compression video H.264 - Entre video : 8 voies BNC - RJ45


Caractéristiques :


  •



      MODEL


      DVR3504HFA/D1
      DVR3508HFA/D1
      DVR3516HFA/D1


      System


      Main Processor
      High performance Dual-core embedded microprocessor


      Operating System
      Embedded LINUX


      System Resources
      Pentaplex function: live, recording, playback, backup & remote access


      Control Mode
      Front panel, USB mouse, IR remote control, Keyboard, Network




      Video


      Input
      4 channel, BNC(1.0Vp-p, 75?)
      8 channel, BNC(1.0Vp-p, 75?)
      16 channel, BNC(1.0Vp-p, 75?)


      Standard
      NTSC(525Line, 60f/s), PAL(625Line, 50f/s)


      Output
      1 HDMI, 1 VGA, 1 TV, 1 Spot, BNC(1.0Vp-p, 75?)


      Audio


      Input
      4 channel, RCA(200-2800mV, 30K?)
      8 channel, RCA(200-2800mV, 30K?)
      16 channel, RCA(200-2800mV, 30K?)


      Output
      1 channel, RCA(200-3000mV, 5K?)


      Bidirectional Talk
      1 channel Input, RCA(200-2800mV, 30K?)




      Display


      Display Split
      1/4
      1/4/8/9
      1/4/8/9/16


      Spot Split
      1/4
      1/4/8/9
      1/4/8/9/16


      Resolution
      1920~1080, 1280~1024, 1280~720, 1024~768


      Tour Display
      Support


      Privacy Masking
      4 self-defined four-sided zones for privacy masking for each camera


      OSD
      Camera title, time, video loss, camera lock, motion detection, recording




      Recording


      Video/Audio Compression
      H.264 / G.711


      Image Resolution
      D1/4CIF(704~576/704~480) / HD1(352~576/352~480) / 2CIF(704~288/704~240) / CIF(352~288/352~240) / QCIF(176~144/176~120)


      Encoding Speed
      Main Stream: D1/HD1/2CIF/CIF(1~25/30fps)


      Extra Stream: CIF/QCIF(1~25/30fps)


      Bit Rate
      32~4096Kb/s


      Recording Quality
      CBR, VBR(1~6 level, level 6 is the best)


      Recording Mode
      Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop


      Recording Priority
      Manual >Alarm >MD >Regular


      Recording Interval
      1~120 min. (default: 60 min.), Pre-record: 1~30 sec., Post-record: 10~300 sec.




      Video Detection & Alarm


      Trigger Events
      Recording, PTZ movement, Tour, Alarm, Email, FTP, Spot, Buzzer & Screen tips


      Motion Detection
      Zones: 396(22~18), Sensitivity: 1~6 (level 6 is highest)


      Video Loss & Camera Blank
      Support


      Alarm Input
      4 channel
      8 channel
      16 channel


      Relay Output
      3 channel




      Playback & Backup


      Playback Channel
      1/2/4/All


      Search Mode
      Time/Date, Alarm, MD & Exact search (accurate to second), Smart search


      Playback Functions
      Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom(any size)


      Backup Mode
      Flash drive / USB HDD / USB CD&DVD-RW / Network download




      Network


      Ethernet
      RJ-45 port (10/100M/1000M)


      Network Functions
      HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server


      Remote Operation
      Monitor, PTZ control, Playback, System setting, File download, Log information




      Hard Disk


      Hard Disk
      2 SATA ports, Up to 6TB


      Space Occupation
      Audio: 28.8MB/H, Video: 56~1800MB/H


      HDD Management
      Hard disk hibernation technology, HDD faulty alarm & Raid(Redundancy)




      Auxiliary Interface


      USB Interface
      2 ports, 1 for mouse control, 1 for backup


      RS232
      Dahua keyboard, PC communication


      RS485
      PTZ control




      Environmental


      Power Supply
      DC12V/3.3A


      Power Consumption
      15W (without HDD)


      Working Environment
      -10 ~+55?C / 10~90%RH / 86~106kpa


      Dimension
      1U, 375mm~285mm~45mm (W~D~H)


      Weight
      2.35KG (without HDD)






Détails :

Marque  : CCTV
Code EAN  :
