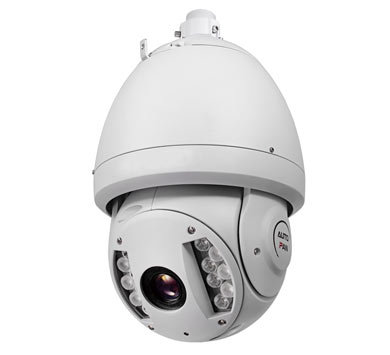

IPH-SDZ200/IO 2Méga Pixel IP/IR Speed Dome 20x

Présentation :

IPH-SDZ200/IO 2Méga Pixel IP/IR Speed Dome 20x Zoom Optique, IP66, H.264/MJPEG


Caractéristiques :


  •
      MODEL
      IPH-SDZ200/IO


      Camera


      Image Sensor
      1/3? progressive scan Exmor CMOS


      Effective Pixels
      Approx. 2 Megapixels


      Lens
      20x optical zoom


      f=4.7mm(Wide)~94.0mm(Tele), F1.6~F3.5


      Digital Zoom
      16x


      Horizontal Viewing Angle
      55.4°(wide) ~ 2.90°(tele)


      Min. Object Distance
      10mm~1000mm (wide~tele)


      Min. Illumination
      1.8Lux/F1.6(color); 0.02Lux/F1.6(B/W)


      Electronic Shutter
      1/1 to 1/30,000 s


      White Balance
      AWB(3200to7500K); ATB(2000to10000K); Indoor(3200K);
     Outdoor(5800K); Manual


      Day/Night
      Auto(ICR) / Color / B/W


      S/N Ratio
      More than 50 dB


      Privacy Masking
      ON/OFF (up to 24 privacy masking areas)


      Analog Video Output
      BNC(1.0Vp-p / 75Ω), PAL / NTSC


      Video & Audio


      Video Compression
      H.264 / MPEG4


      Image Resolution
      1080P(1920×1080) / 720P(1280×720) /
     D1(704×576/704×480)


      Encoding Speed
      Main Stream
      PAL: 1080P/720P(1~25fps)


      Extra Stream
      PAL: D1(1~25fps)


      Bit Rate
      32K~8Mbps


      Audio Compression
      G.711a(32Kbps) / AMR(10.2Kbps)


      Audio Mode
      Off/Audio input/Audio output


      Dome Drive


      Pan/Tilt Range
      Horizontal: 0°~360° endless,Vertical: -2°~90° auto flip
     180° to continue monitor


      Manual Control Speed
      Horizontal: 0.1° ~160° /s, Vertical: 0.1° ~120° /s


      Preset Speed
      Horizontal: 240° /s, Vertical: 200° /s


      Preset
      255


      PTZ Mode
      5 Auto Pattern, 8 Auto Tour, 5 auto scan


      3D Positioning
      Yes


      Speed Setup
      Human-oriented focal Length/ speed adaptation


      Info Display
      Time, Location, Dome title, Dome coordinates, Temperature,
     Alarm, and etc.


      Power up Action
      Auto restore to previous PTZ and lens status after power
     failure


      Idle Motion
      Activate preset/scan/tour/ patter if there is no command in
     the specified period.


      Time Task
      Auto activation of Preset/Scan/Tour/ Pattern by
     preset-time


      Alarm
      7/2 alarm input/output, Triggering
     Preset/Tour/Pattern/Scan/Alarm output


      Protocol
      DH-SD, Pelco-P/D, Auto recognition of general
     protocols


      IR LED
      Auto / Near light / Far light / OFF, 6 Near light + 8 Far
     light, up to 100m


      Network


      Ethernet
      RJ-45 (10/100Base-T)


      Network Functions
      HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, SMTP, NTP, DHCP, DNS, IP
     Filter, PPPOE, DDNS, FTP, Alarm Server


      Max Remote Users
      20 Users simultaneously


      Processor
      TI DaVinci Series DSP


      Operating System
      Embedded LINUX


      Resource
      Simultaneous remote monitoring, remote operation & local
     recording


      Remote Operation
      Monitor, PTZ control, Voice Intercom, System setting,
     Playback, File download, Log information, Maintenance & Upgrade


      Local Recording
      SD/SDHC, Max 32GB


      User Interface
      WEB, CMS(DSS/ PSS), DMSS, NVR


      General


      Power Supply
      AC 24V/3A (±10%)


      Power Consumption
      12W/30W(IR LED ON)


      Working Temperature
      -30ºC ~ 60ºC


      Working Humidity
      <90%


      Protection Level
      IP66, 4000V thunder, surge and wave-proof
     protection


      Dimension
      Φ229.6 (mm) x 381.5 (mm)


      Weight
      7.0kg






Détails :

Marque  : CCTV
