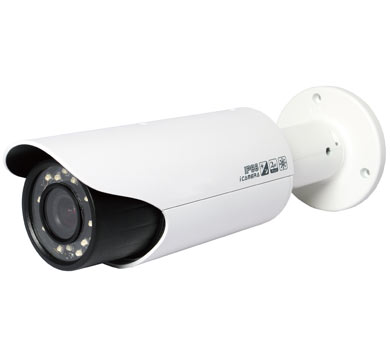

IPH-IB51C/P 2Méga Pixel IP/IR Objectif 3.3-12mm

Présentation :

IPH-IB51C/P 2Méga Pixel IP/IR Objectif 3.3-12mm, DC12V, H264, CMOS, POE


Caractéristiques :

    *2.0 MP CMOS Full HD Water-proof IR Network Camera , 25fps@1080P, 3.3~12mm
     lens, PoE, IR LED, IP66.

  •
      MODEL
      IPH-IB51C/P


      General


      Processor
      TI DaVinci Series DSP


      Operating System
      Embedded LINUX


      Resource
      Simultaneous remote monitoring, local recording and remote
     control


      User Interface
      WEB, CMS(DSS/ PSS), DMSS, NVR


      Camera


      Image Sensor
      1/3? 2.0 Mp SONY progressive scan Exmor CMOS


      Effective Pixels
      1920(H)×1080(V)


      Electronic Shutter
      Auto/Manual, 1/3~1/10000s


      Mini. Illumination
      0.1LUX/F1.4(Color), 0.01LUX/F1.4(B/W), 0Lux(IR ON)


      Signal Noise Ratio
      >50dB


      Gain Control
      Auto/Manual


      White Balance
      Auto/Manual


      Day/Night
      ICR


      Lens
      CS mount, Auto Iris, 3.3-12mm@F1.4


      Video


      Video Compression
      H264 / MJPEG


      Image Resolution
      1080P(1920×1080) / SXGA(1280×1024) /1.3M(1280× 960) /
     720P(1280×720) /D1(704×576) / CIF(352×288)


      Encoding Speed
      Main Stream:1080P/ SXGA/ 1.3M /720P/
     D1(1~25fps)


      Extra Stream: D1/CIF (1~25fps)


      Bit Rate
      56Kbps~8192Kbps


      Snapshot
      Fastest 1fps JPEG capture


      Video Format
      PAL


      Analogue Video Output
      1 channel BNC(1.0Vp-p, 75Ω)


      Audio


      Audio Compression
      G.711a / G.711u / PCM


      Bit Rate
      128kbps/64kbps/10.2kbps


      Input
      1 channel, 3.5mm JACK LINE IN


      Output
      1 channel, 3.5mm JACK SPEAK OUT


      Bidirectional Talk
      The same with the audio input channel


      Network


      Ethernet
      RJ-45 (10/100Base-T)


      Network Functions
      HTTP, TCP/IP, ARP, IGMP, ICMP, RTSP, RTP, UDP, RTCP, SMTP,
     FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP


      Remote Operation
      Monitor, PTZ control, Playback, System setting, File
     download, Log information, Maintenance & Upgrade


      Auxiliary Interface


      SD Card
      Max 32GB Micro SD card, local storage


      Alarm
      2 Input / 1 Output


      Environmental


      Power Supply
      DC12V(AC24V optional), PoE


      Power Consumption
      Max.10W


      Max. IR Distance
      20 m


      Ingress Protection
      IP66


      Operating Environment
      -10°C~+60°C, 10%~90%


      Dimension
      ф104 mm × 306.7 mm


      Weight
      1.25Kg






Détails :

Marque  : CCTV
Code EAN  :
