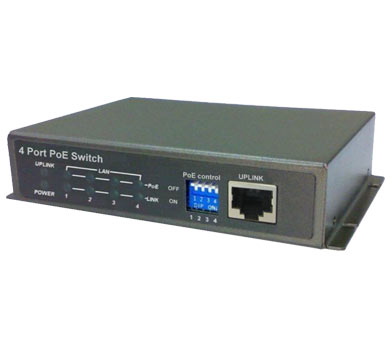

PTC-PW4P/EU SWITCH POE 4 CH

Présentation :

PTC-PW4P/EU SWITCH POE 4 CH


Caractéristiques :


  •

      MODEL

      PW541/C

      PW541D


      PW541AT/C


      PW541E




      Standards

      IEEE 802.3 10BaseTIEEE 802.3u 100BaseTXIEEE 802.3x Flow
     Control



      Features

      MAC Address: 2KBuffer Memory:512K bitsTransmission
     Method:Store and Forward



      Filtering/Forwarding Rates

      100Mbps port - 148,800pps10Mbps port -
     14,880pps



      TransmissionMedia

      10BaseT Cat. 3, 4, 5 UTP/STP100BaseTX Cat.5
     UTP/STP



      Uplink Port

      1

      1


      1


      1




      Uplink Port Fed byPoE power

      No

      Yes


      No


      No




      PoE Switch PortOn/Off DIP Setup(PW541C/PW541AC/PW541E without On/Off DIP)

      Max.61.6W

      Fed by PoEInjector orPoE Switch


      Max.120W


      Max.61.6W




      Output Power Pin

      4,5,7,8

      4,5,7,8


      4,5,7,8


      1,2,3,6




      H/W VLAN (option)

      PW541-V

      PW541D-V


      PW541AT-V


      PW541E-V




      LED Indicators

      Power, Uplink, LAN1~4port, PoE1~4port



      Power Adaptor

      Input:90-260VAC,50~60HzOutput:48VDC/1.3A
      OptionalFed byInjector Yoda PI300 (Max.50W)
      Input:90-260VAC,50~60HzOutput:48VDC/3A
      Input:90-260VAC,50~60HzOutput:48VDC/1.3A



      Dimensions

      120 × 90 × 28 mm (L x W x H)



      Weight

      1.2kg



      Operating Temperature

      0℃~ 50℃



      Humidity

      10 to 90% RH (non-condensing)



      Certifications

      FCC,CE






Détails :

Marque  : CCTV
Code EAN  :
