IPD-FE51M/P5 Caméra IP, 5 Mega pixel

Présentation :

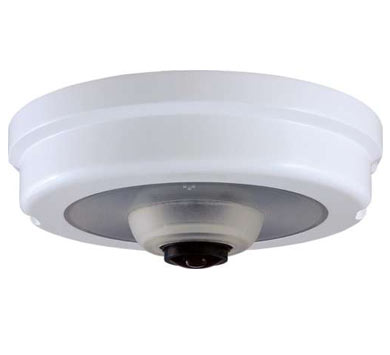

IPD-FE51M/P5 Caméra IP, 5 Mega pixel Fish Eye (1.05mm), H264/MJPEG, CMOS, POE, 2592 x 1944, Emplacement SD Carte


Caractéristiques :


  •
      MODEL
      IPD-FE51M/P5


      Camera


      Image Sensor
      5M Progressive CMOS


      Effective Pixels
      2592(H) x 1944(V)


      White Balance
      Manual / AWB / ATW


      Shutter Speed
      1 ~ 1/10000 sec.


      Lens


      Stereo Projection Type
      1/2.5" Fisheye Lens


      Focal Length
      1.05 mm


      F Number
      F2.8


      FOV
      180ﾟ@ Full Resolution


      Operation


      Multiple Languages
      English / French / German / Italian / Korean / Simplified
     Chinese / Traditional Chinese / Russian


      Image Setting
      Backlight Compensation
      On / Off


      White Balance
      Auto / Manual


      Noise Reduction
      3D
      On / Off


      Wide Dynamic Range
      On / Off


      Privacy Mask
      On / Off


      Brightness
      Manual


      Exposure
      Auto / Manual


      Sharpness
      Manual


      Contrast
      Manual


      Saturation
      Manual


      Hue
      Manual


      Digital Zoom
      Support


      Motion Detection
      On / Off


      Privacy Mask Type
      Color


      ICR
      Auto / LED On / LED Off / Smart IR / Light Sensor


      Tampering Alarm
      On / Off


      Audio
      Type
      Built-in Speaker (Max. 2W Mono) & Microphone or Two-way
     Audio (Line in / Line out)


      Compression
      G.711 / G.726


      Network


      Interface
      RJ-45, 10/100 Mbps Ethernet


      Video Compression
      H.264 Baseline / Main Profile / High Profile /
     MJPEG


      Video Streaming
      Single Stream: 2592X1944 (10 fps)


      Single Stream: 2048X1536 (15 fps)


      Simultaneous H.264 1080p (25/30 fps) + MJPEG D1 (25/30
     fps)


      Simultaneous H.264 1080p (25/30 fps) + H.264 D1 (25/30
     fps)


      Quad Streams


      Video Resolution
      H.264
      5M (2592x1944) / 3M (2048x1536) / Full HD 1080p / SXGA / HD
     720p / XGA / SVGA / D1 / VGA / CIF


      MJPEG
      Full HD 1080p / SXGA / HD 720p / XGA / SVGA / D1 / VGA /
     CIF


      Protocol
      IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP,
     SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF


      Security
      HTTPS / IP Filter / IEEE 802.1x


      Alarm
      Input
      1 Set5V 10kΩ pull up


      Output
      1 SetPhoto Relay Output 300V DC/AC


      Event Notification
      HTTP / FTP / SMTP


      Micro SD
      microSDHC 32GB support


      Supported Web Browser
      Internet Explore (6.0+) / Chrome / Firefox /
     Safari


      User Account
      20


      Password Levels
      User and Administrator


      Mechanical


      Built-in IRIlluminator
      Working Distance
      5 m


      Wavelength
      850 nm


      Number of LEDs
      6


      Lens Mounting
      M12 Fisheye Lens


      Connectors
      Alarm & Audio
      8 Pin Terminal Block, Pitch 2.5 mm


      Power
      3 Pin Terminal Block


      Ethernet
      RJ-45


      General


      Operating Temperature
      -10°C ~ 50°C (14° ~ 122° F)


      Humidity
      10% ~ 90%, No Condensation


      Weatherproof Standard
      Rugged Camera - IP66


      Dimension
      Φ 149 x 45.8 mm (Φ 5.87 x 1.80 in.)


      Weight
      350 g (0.77 lbs)


      Power Source
      DC 12V / AC 24V / PoE


      Power Consumption
      Max. 12W


      Regulatory
      CE / FCC / RoHS






Détails :

Marque  : CCTV
Code EAN  :
