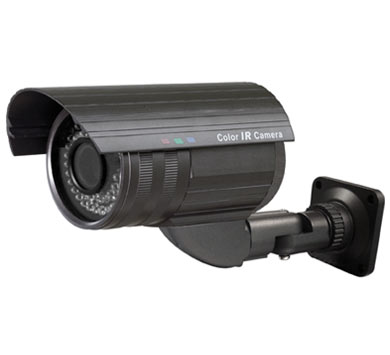

CCD-IS89A/3616MTN- Caméra couleur infraroug

Présentation :

600 TV lignes, caméra IR 40-50M, vari-focale 3.6-16mm, next chip, OSD


Caractéristiques :


  •

      MODEL

      CCD-IS89A/3616MTN


      Pick-up device
      1/3" SONY Super HAD II CCD


      Effective pixels
      NTSC:768 x 494, PAL:752 x 582


      Resolution
      Color 600TVL


      Min. illumination
      0lux (IR on)


      Sync system
      Internal


      Scan system
      2:1 interlace


      S/N ratio
      more than 50dB


      Lens
      3.6-16mm Korean manual


      Angle of view
      100°-26.1°


      Electronic shutter
      Auto/Anti-flicker/Manual


      Digital WDR
      Off/On(0-63 level adjustable)


      BLC
      HLC/BLC/OFF


      White balance
      ATW1/ATW2/MANUAL/FIXED


      2DNR
      OFF/ON


      Day&Night
      Auto/B/W/Color/EXT


      Motion detection
      Off/On (4 areas)


      Privacy zones
      Off/On (8 areas)


      Mirror function
      Off/On (Horizontal mirror)


      Image adjustment
      Contrast,Sharpness,Saturation


      AGC
      High/Mid/Low/Off


      Gamma
      0.45/Custom (0.05-1.0)


      Display mode
      CRT/LCD/USER


      OSD menu
      Simplified Chinese/English


      Video output
      1.0Vp-p Composite Video Output, 75 Ohm


      IR distance
      40-50m(IR leds: 48×Φ5)


      Power supply
      DC12V± 10%


      Power consumption(Max)
      200mA/600mA(IR on)


      Operation temp.
      -20°C ~ 50°C





Détails :

Marque  : CCTV
Code EAN  :
