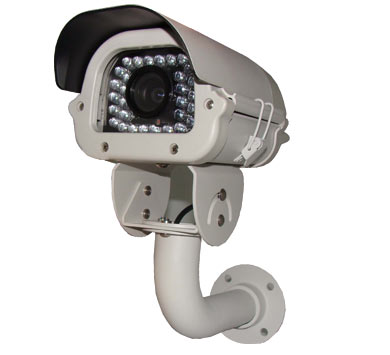

CCD-IH89A/0922MN - Caméra couleur infraroug
Présentation :
600 lignes TV, IR 80M, Etanche avec ventilateur, 9-22mm Lens
Caractéristiques :
MODEL
CCD-IH89A/0922MN
Pick-up device
1/3" SONY Super HAD II CCD
Effective pixels
NTSC:768 x 494, PAL:752 x 582
Resolution
Color 600TVL
Min. illumination
0lux (IR on)
Sync system
Internal
Scan system
2:1 interlace
S/N ratio
more than 50dB
Lens
9-22mm manual
Anlge of view
40.6°-16.2°
Electronic shutter
Auto/Anti-flicker/Manual
Digital WDR
Off/On (0-63 level adjustable)
BLC
HLC/BLC/OFF
White balance
ATW1/ATW2/MANUAL/FIXED
2DNR
OFF/ON
Day&Night
Auto/B/W/Color/EXT
Motion detection
Off/On (4 areas)
Privacy zones
Off/On (8 areas)
Mirror function
Off/On (Horizontal mirror)
Image adjustment
Contrast, Sharpness, Saturation
AGC
High/Mid/Low/Off
Gamma
0.45/Custom(0.05-1.0)
Display mode
CRT/LCD/USER
OSD menu
Simplified Chinese/English
Video output
1.0Vp-p Composite Video Output, 75 Ohm
IR distance
40-50m(30xΦ8)
Power supply
DC12V± 10%
Power consumption(Max)
200mA/600mA(IR on)
Operation temp.
-20°C ~ 50°C
Détails :
