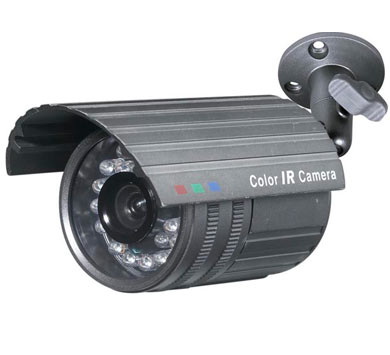

CCD-I89A/15MFN-3.6mm - Caméra couleur infraroug

Présentation :

600 lignes TV, caméra IR 15M IR, 3.6mm, next chip


Caractéristiques :


  •

      MODEL

      CCD-I89A/15MFN


      Pick-up device
      1/3" SONY Super HAD II CCD


      Effective pixels
      NTSC:768 x 494,PAL:752 x 582


      Resolution
      Color 600TVL


      Min. illumination
      0lux (IR on)


      Sync system
      Internal


      Scan system
      2:1 interlace


      S/N ratio
      more than 50dB


      Lens
      3.6mm M12 lens


      Angle of view
      90°


      Electronic shutter
      Auto


      White balance
      ATW


      Day&Night
      Auto


      Gamma
      0.45


      Video output
      1.0Vp-p Composite Video Output, 75 Ohm


      IR distance
      10-15 m (24xΦ5)


      Power supply
      DC12V± 10%


      Power consumption(Max)
      400mA/DC12V (IR on)


      Operation temp.
      -20°C ~ 50°C





Détails :

Marque  : CCTV
Code EAN  :

Sat Info Services n’est pas responsable des erreurs dans la documentation des produits.
