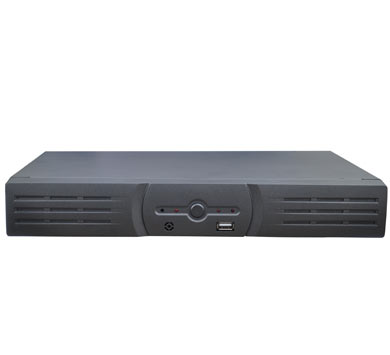

DVR3104HA - DVR autonome - 4 voies
Présentation :
Enregistreur numérique autonome H264 - Entrée video : 4 voies BNC
Caractéristiques :
DVR3104HA - DVR autonome -4 voies
MODEL
DVR3104HA
Main processor
High performance embedded microprocessor
Operating system
Embedded Linux
System resourses
live, recording, playback, backup, remote access
Video input
Input
4 channel
BNC, PAL/NTSC
Audio input&Talk
1ch input , 1ch talk
Video/Audio output
Output
1 channel, BNC
VGA
1 channel,1440~900 1280~1024, 1280~720, 1024~768
Audio output&Talk
1 channel, &talk BNC
Video & Audio encode
Realtime monitoring resolution
D1
Compression
H.264/MPEG 4 AVC
Mobile phone monitoring resolution
CIF, QCIF
Video playback resolution
4 channel D1
Video frame rate
1`25fps/PAL, 1`30fps /NTSC
Encoding control
VBR/CBR
Video encoding rate
48Kbps~2048Kbps
Stream code
Complex stream/Video stream
Audio encoding standard
G.711A
Audio encoding rate
64Kbps
Dual stream code
Main stream:D1/CIF, Extra stream: CIF/QCIF
Image quality
Best/Better/Normal/Bad/Worse/Worst
Playback channel
1/2/3/4 /8/16channel
Talkback
Two-way talkback
Other
Motion detect
Zones:396 (22~18); Sensitivity:1-6(6 is the highest)
Privacy zones
Zones:4 zones/channel
Snapshot
JPEG, P:704~576/N:720*480
Control Mode
USB mouse, Network
Recording priority
Manual>Alarm>MD>Regular
Recording Size
1-120min(default:60min), Pre-record(1-30sec)
Trigger events
Recording, PTZ movement, Tour, Alarm, Email, Screen,output
Playback functions
Play, Pause, Stop, Rewind, Fast play, Slow play, Pagedown, Pageup, Next file, Previous file, Next camera, Previous camera, Repeat
Backup mode
Flash drive/USB/Network download
Network functions
Onvif,TCP/IP, UDP, DHCP, UPNP,DNS, IP filter, PPPOE, DDNS, FTP, Email, Alarm sever
Alarm
Video loss, Motion detect, Disk no space, Disk error, Video cover, Local alarm, Exterior alarm
3G mobile surveillance
Iphone, Windows mobile, Blackberry, Andriod, Symbian
HDD
SATA ports
1 (max 2TB)
Interface
Network interface
RJ45 10M/100M adaptive Ethernet port
USB interface
2 USB2.0 ports
RS-485
1 channel
General
Panel
Blue backlit LCD (IP, Error code, Recording statement, Temp., Date)
Size
<1U, 330x250x44mm (W*D*H)
Weight
1.5Kg (without HDD)
Power supply
DC12V}10% 2A
Power consumption
10W (without HDD)
Détails :
Sat Info Services nest pas responsable des erreurs dans la documentation
des produits. |
