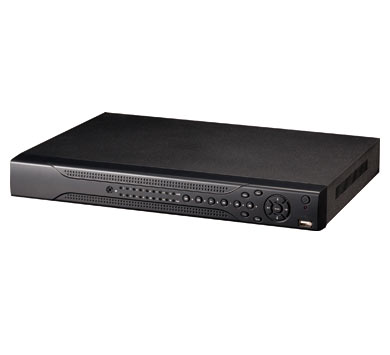

NVR4208H - 8 ch STD NVR, HDMI, Pas Audio.
Présentation :
NVR4208H - 8 ch STD NVR, HDMI, Pas Audio, 8Ch D1/200IPS, 720P/50IPS, 1080P/50IPS, Compatible ONVIF, 2 Emplace HD.
Caractéristiques :
MODEL
NVR4208H
System
Main Processor
High performance Dual-core embedded microprocessor
Operating System
Embedded LINUX
System Resources
Pentaplex function: live, recording, playback, backup & remote access
Control Mode
Front panel, USB mouse, IR remote control, Keyboard, Network
Video
IP Camera Input
8ch@D1 / 4ch@720P / 2ch@1080P
IP Camera Supported List
Dahua, Arecont Vision, AXIS, Canon, Dynacolor, Panasonic, SAMSUNG,
SANYO, SONY, ONVIF
Output
1 HDMI(video & audio), 1 VGA
Display
Display Split
1/4/8/9
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768
Tour Display
Support
Privacy Masking
4 self-defined four-sided zones for privacy masking for each camera
OSD
Camera title, time, video loss, camera lock, motion detection, recording
Recording
Compression
H.264 / MPEG4
Recording Resolution
1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)
Max Recording Speed
200/240fps@D1, 100/120fps@720P , 50/60fps@1080P
Recording Bit Rate
Up to 16Mbps
Recording Quality
CBR, VBR(1~6 level, level 6 is the best)
Recording Mode
Manual, Schedule(Regular(Continuous), MD(Video detection: Motion
detection, Camera blank, Video loss), Alarm), Stop
Recording Priority
Manual >Alarm >MD >Regular
Recording Interval
1~120 min (default: 60 min)
Video Detection & Alarm
Trigger Events
Recording, PTZ movement, Tour, Alarm, Email, FTP, Buzzer & Screen tips
Motion Detection
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Video Loss & Camera Blank
Support
Alarm Input
8 channel
Relay Output
3 channel
Playback & Backup
Playback Channel
1/2/4/All
Search Mode
Time/Date, Alarm, MD & Exact search (accurate to second),
Smart search
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,
Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup
selection, Digital zoom
Backup Mode
Flash drive / USB HDD / USB CD&DVD-RW / Network download
Network
Ethernet
RJ-45 port (10/100M/1000M)
Network Function
HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,
PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP
camera, DVR, NVS etc)
Max Remote Users
20 Users simultaneously
Remote Operation
Monitor, PTZ control, Playback, System setting, File download,
Log
information
Hard Disk
Hard Disk
2 SATA ports, Up to 6TB
Space Occupation
Max 3.6GB/H per channel
HDD Management
HDD Group, HDD hibernation technology, HDD faulty alarm & Raid(Redundancy)
Auxiliary Interface
USB Interface
2 ports, 1 for mouse control, 1 for backup
RS232
Dahua keyboard, PC communication
RS485
PTZ control
Environmental
Power Supply
DC12V/3.3A
Power Consumption
20W(without HDD)
Working
Environment
-10 ~+55°C / 10~90%RH / 86~106kpa
Dimension
1U, 375mm×285mm×45mm(W×D×H)
Weight
2.3KG(without HDD)
