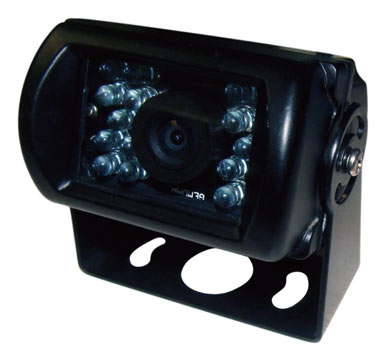

CCD-IW89A/028F, 600TVL, 0Lux (IR ON), 5-10M IR

Présentation :

CCD-IW89A/028F 1/3" SONY Super HAD Ⅱ CCD, 600TVL, 0Lux (IR ON), 5-10M IR distance, 3.6mm M12 lens, vandap-proof, IP67, DC12V


Caractéristiques :




  •




      MODEL
      CCD-IW89A/028F


      Pick-up device
      1/3" SONY Super HAD Ⅱ CCD


      Effective pixels
      NTSC: 768×494, PAL: 752×582


      Resolution
      Color 600TVL


      Min. illumination
      0lux (IR on)


      Sync system
      Internal


      Scan system
      2:1 interlace


      S/N ratio
      more than 50dB


      Lens
      3.6mm M12 lens (2.8mm M12 lens optional)


      Electronic shutter
      Auto


      White balance
      ATW


      Day&Night
      Auto


      Gamma
      0.45


      Video output
      1.0Vp-p Composite Video Output, 75 Ohm


      IR distance
      5-10m (18×Φ5)


      Power supply
      DC12V±10%


      Power consumption (Max)
      320mA/DC12V (IR on)


      Operation temp.
      -20°C ~ +50°C





  • Dimension:

  •








Détails :

Marque  : CCTV
Code EAN  :
