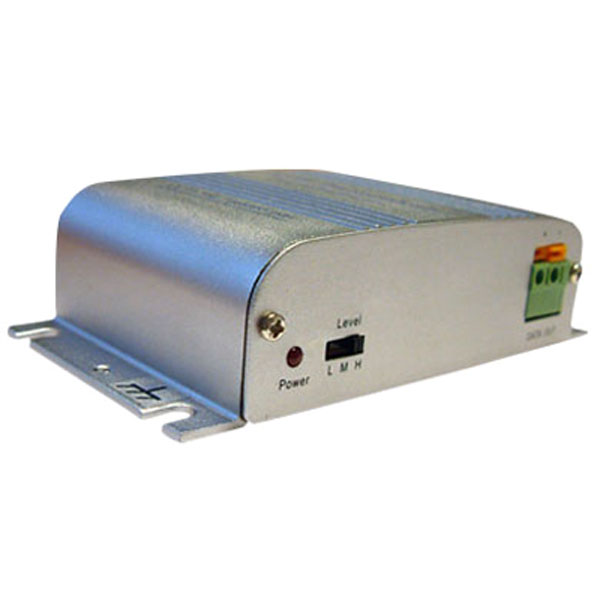

LLT-301R - Video récepteur actif

Présentation :

CCTV Vidéo récepteur actif - Fréquence : DC-6MHz Mode courant - Impédance : BNC coax: 75 ohms UTP - Connecteur: RJ-45 100ohm


Caractéristiques :

    LLT-301R - Video récepteur actif
  • CCTV Video récepteur actif
  • Fréquence : DC-6MHz Mode courant
  • Mode différentiel rejet : 15kHz-6MHz 60dB.
  • Impédance : BNC coax: 75 ohms UTP
  • Connecteur: 100ohm or RJ-45 100ohm
  • Spécifications techniques
  • Video :
       Frequency response: DC-6MHz
       Common-mode/differential-mode rejection: 15kHz-6MHz 60dB type.
       Impedance: BNC coax: 75 ohms
       UTP/connector: 100ohm or RJ-45 100ohm
  • Control :
       Receiver: 4 rang distance at option; adjustable brightness and sharpness
       Transmitter: adjustable gain
  • Environment :
       Temperature: 0 - +50 deg. C
       Humidity: 0-95%
  • Wire type :
       Spec.: 24AWG UTP CAT-5
       Impedance: 100 ohm +/- 20%
       DC loop resistance: 18 ohm/100M
       Differential capacitance: 62pf/M (max.)
  • Transmission Range :
       Color :1800M , B/W:2400M ( LLT-301R + LLT-201C )
       Color:2300M , B/W: 3000M ( LLT-301R + LLT-301T )
  • Power: DC 12V < 80mA
  • Surge suppression: 6000V 1.2 us x 50 us
  • Dimensions: 90 x 60 x 28mm
  • Weight: 130g



Détails :

Marque  : CCTV
Code EAN  :
