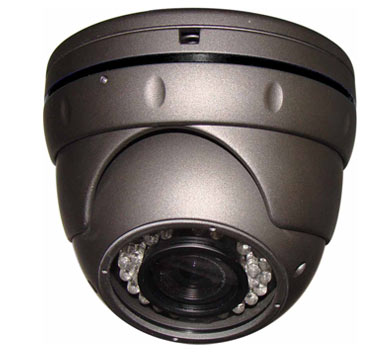

CCD-IDO89A/30MTN- Caméra couleur infrarouge

Présentation :

Caméra Infrarouge 1/3" Sony Super HQ1 CCD,VARI-FORCAL,IR 30M, - 600TVL- 3 AXES


Caractéristiques :


  •


      MODEL

      CCD-IDO88A/30MTN


      Pick-up device
      1/3" SONY Super HAD II CCD( HQ1 )


      Effective pixel
      NTSC:768x494, PAL:752x582


      Resolution
      600TVL


      Sensor size
      4.9mm*3.7mm


      Sync system
      Internal


      Min. illumination
      0Lux (IR on)


      S/N ratio
      More than 52dB


      Electronic shutter
      NTSC:1/60 ~ 1/100,000sec,PAL:1/50 ~ 1/100,000sec


      Lens
      4-9mm Korean manual lens


      Angle of View
      98º-38º


      Gamma
      0.45


      White balance
      Auto


      AGC
      Auto


      Video output
      1.0Vp-pComposite Video Output, 75 Ohm


      IR distance
      20~30m


      Power supply
      DC12V


      Power consumption (Max)
      160mA/380mA (IR on)


      Operation temp.
      -20°C ~ 50°C






Détails :

Marque  : CCTV
Code EAN  :
