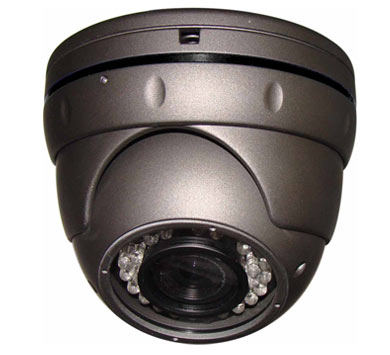

CCD-ID89A/15MT/2,5mm- Caméra couleur infrarou

Présentation :

Caméra Infrarouge 1/3" SONY super HAD CCD 600TVL, 2.5mm/12M DC ICR, 10-15M 128° Focal large


Caractéristiques :


  •


      MODEL

      CCD-ID89A/15MT/2.5mm


      Pick-up device
      1/3" SONY Super HAD II CCD


      Effective pixels
      NTSC:768 x 494, PAL:752 x 582


      Resolution
      Color 600TVL


      Min. illumination
      0lux (IR on)


      Sync system
      Internal


      Scan system
      2:1 interlace


      S/N ratio
      more than 50dB


      Lens
      2.5mm M12


      Angle of view
      150°


      Electronic shutter
      Auto


      White balance
      ATW


      Day&Night
      Auto


      Gamma
      0.45


      Video output
      1.0Vp-p Composite Video Output, 75 Ohm


      IR distance
      10-15 m(24xÖ5)


      Power supply
      DC12V± 10%


      Power consumption(Max)
      400mA/DC12V(IR on)


      Operation temp.
      -20°C ~ 50°C






Détails :

Marque  : CCTV
Code EAN  :
