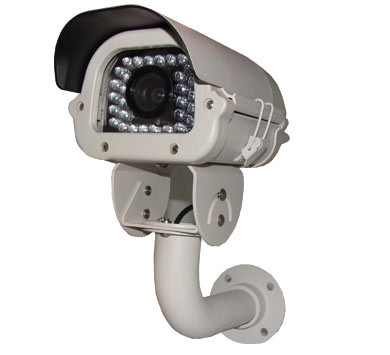

CCD-IH88I/4090DN - Caméra couleur infraroug

Présentation :

Caméra Infrarouge 1/3" SONY super HAD II CCD 540TVL, 40M IR CUT, IP65 Menu OSD


Caractéristiques :


  •


      MODEL

      CCD-IH88I/4090DN



      Pick-up device

      1/3" SONY Supper HAD ¥± CCD



      Effective Pixels

      752x582



      Sync system

      Internal



      Resolution

      540TVL



      Min. Illumination

      Color:0.05Lux/F1.2 B/W:0.005Lux/F1.2 (sens-up) , 0Lux ( IR on )



      S/N

      More than 48dB



      Electronic Shutter

      NTSC:1/60~1/100,000, PAL:1/50~1/100,000



      Fliclerless Mode

      On / Off


      Lens
      korea DC4-9mm IR CUT M12


      Angel of view
      98¨¬-38¨¬


      Gamma
      Auto/Manual


      White Balance
      Auto (ATW,AWB,FIXED,MANUAL)



      AGC Gain Control

      High / Low (6dB~40dB)


      Back Light Comp
      On / Off (64AREA)



      Motion Detection

      On / Off (64AREA)



      Day & Night

      Color¡¢B/W¡¢AUTO ( Level Adjust )



      Video Output

      1.0Vp-p Composite Video Output,75ohm



      IR distance

      40~50m


      Power Supply
      DC12V


      Power Consumption
      800mA ( Max )


      Operating Temp
      -20¡ÆC ~ 50¡ÆC






Détails :

Marque  : CCTV
Code EAN  :
