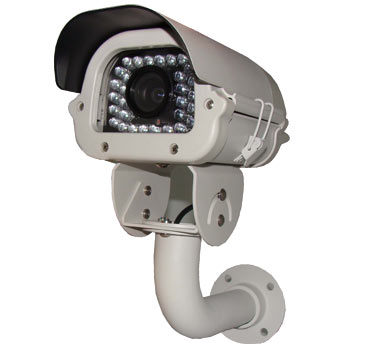

CCD-IH88I/0922DN - Caméra couleur infraroug

Présentation :

Caméra Infrarouge 1/3" SONY super HAD CCD 540TVL, IR CUT, 60M, IP66 Menu OSD


Caractéristiques :


  •


      MODEL

      CCD-IH88I/0922DN



      Pick-up device

      1/3" SONY CCD



      Effective Pixels

      NTSC:768x494,PAL:752x582



      Sync system

      Internal



      Resolution

      540TVL



      Min. Illumination

      0.2Lux / F1.2, 0Lux ( IR on )



      S/N

      More than 48dB



      Electronic Shutter

      NTSC:1/60~1/100,000, PAL:1/50~1/100,000



      Fliclerless Mode

      On / Off


      Lens
      4-9mm/9-22mm DC ICR M12 Lens optional


      Gamma
      0.45


      White Balance
      Auto (ATW,AWB,FIXED,MANUAL)



      AGC Gain Control

      High / Low (6dB~40dB)


      Back Light Comp
      On / Off (64AREA)



      Motion Detection

      On / Off (64AREA)



      Day & Night

      ColorAB/WAAUTO ( Level Adjust )



      Video Output

      1 Vp-p / 75 Ohm



      IR distance

      60~80m


      Power Supply
      DC12V


      Power Consumption
      800mA ( Max )


      Operating Temp
      -10?C ~ 50?C


      Angle of view
      40.6?-16.2?






Détails :

Marque  : CCTV
Code EAN  :
