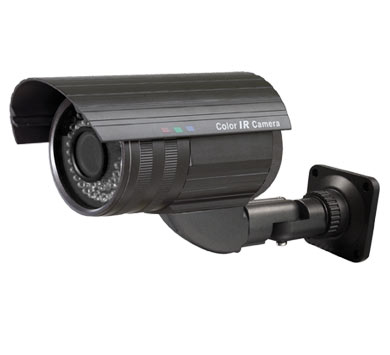

CCD-IS88I/50MTN - Caméra couleur infraroug

Présentation :

Caméra couleur Avec Filtre ICR- Infrarouge 50m -1/3" SONY Super HAD II CCD - 9-22mm/Vari-Focale - Menu OSD - Résolution: 540 TVL -IP66 PIED 3 Axes


Caractéristiques :


  •


      MODEL

      CCD-IS88I/50MTN


      Pick-up device
      1/3" SONY Super HAD II CCD


      Effective pixels
      NTSC:768*494,PAL:752*582


      Resolution
      540TVL


      Sensor size
      4.9mm*3.7mm


      Sync system
      Internal


      Min. illumination
      0Lux (IR on)


      S/N ratio
      More than 48dB


      Electronic shutter
      FLK/Manual/Fixed


      Lens
      9-22mm Korea manual lens


      Fliclerless mode
      On/off


      Mirror function
      On/off


      Privacy zone
      On/off (4 AREAS)


      BLC
      On/off (64 AREAS)


      Motion detect
      On/off (64 AREAS)


      Gamma
      Auto/manual


      White balance
      Auto(ATW, AWB, FIXED, MANUAL)


      AGC
      On/off (0-255)


      Video output
      1.0V p-p Composite Video Output, 75 Ohm


      IR distance
      40~50m


      Power supply
      DC12V


      Power consumption
      110mA/430mA(IR on)


      Operating temp.
      -10°C ~ 50°C






Détails :

Marque  : CCTV
Code EAN  :
