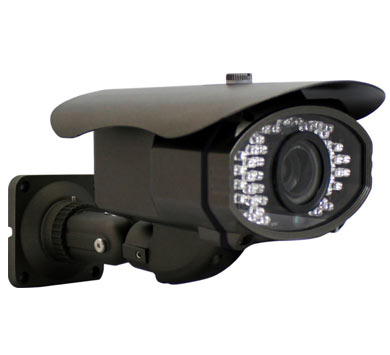

SHARK40/3616D 1/3" SONY 600TVL
Présentation :
1/3" SONY Super HAD II CCD, 600TVL, OSD Menu IP67 IR:40-50m
Caractéristiques :
- 1/3" SONY Super HAD II CCD- Resolution: 600TVL- Min. illumination: 0Lux (IR ON)- Electronic shutter adjustable, D-WDR, BLC, HLC, Anti-flicker, Mirror, Motion detection, Lens shading control, Privacy zones- IR distance:40-50m Constant current IR leds PCB board- Innovative and unique appearance, streamlined design, IP67, Lightning-proof- OSD menu, Gimbal cable bracket included, DC12V
MODEL SHARK40/3616D
Pick-up device 1/3" SONY Super HAD II CCD
Effective pixels NTSC:768*494, PAL:752*582
Resolution Color 600TVL
Min. illumination 0lux(IR on)
Sync system Internal
Scan system 2:1 interlace
S/N ratio more than 50dB
Lens 3.6-16mm DC Korean
Angle of view 100?-26.1?
Electronic shutter Auto/Anti-flicker/Manual
Digital WDR Off/On (0-63 level adjustable)
BLC HLC/ BLC/ OFF
White balance ATW1/ ATW2/ MANUAL/ FIXED
2DNR OFF/ON
Day&Night Auto/ B/W/ Color/ EXT
Motion detection Off/On (4 areas)
Privacy zones Off/On (8 areas)
Mirror function Off/On (Horizontal mirror)
Image adjustment Contrast, Sharpness, Saturation
AGC High/ Mid/ Low/ Off
Gamma 0.45/Custom(0.05-1.0)
RS-485 control
Protocal:Pelco-D, Pelco-P,
Nextchip Baud rate:2400-57600
Display mode CRT/ LCD/ USER
OSD menu Simplified Chinese/English
Video output 1.0Vp-p Composite Video Output, 75 Ohm
IR distance 40-50m(IR leds: 48~?³5)
Power supply DC12V} 10%
Power consumption(Max) 200mA/600mA(IR on)
Operation temp. -20?C ~ 50?C
Détails :
