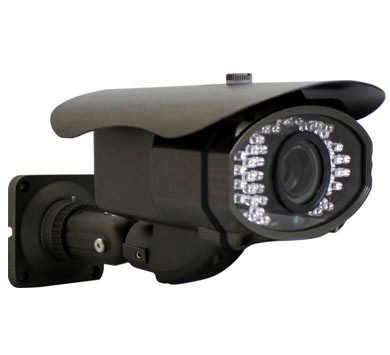

SHARK40/3616D-E7 1/3" SONY EX-view HAD II CCD 700L
Présentation :
SHARK40/3616D-E7 1/3" SONY EX-view HAD II CCD (960H), 700TVL, 0Lux(IR on),40~50M IR 3.6-16mm Korean
Caractéristiques :
- 1/3" SONY EX-view HAD II CCD (960H)- DSP:Sony Effio-E- Resolution: Color 700TVL- Min illumination: 0Lux- Motion detection,Privacy zones,BLC,HLC,CRR- Electronic shutter adjustable, Mirror function,White Balance,ATR,NR(2D noise reduction)- IR distance:40-50m,Constant current IR leds PCB board- Innovative and unique appearance, IP67, Lightning-proof- OSD menu,Gimbal cable bracket included,DC12V
MODEL SHARK40/3616D-E7
Pick-up device 1/3" SONY EX-view HAD II CCD (960H)
Effective pixels NTSC:976x494,PAL:976x582
Resolution Color 700TVL
Min.illumination 0lux
Scan system 2:1 interlace
Sync system Internal/Line lock
S/N ratio more than 50dB
lens 3.6-16mm DC
Angle of view 100°-26.1°
Electronic shutter AUTO(1/60(1/50)~1/100,000) /FIXED/MANUAL
White balance MANUAL/USER1/USER2/PUSH LOCK/CRR/ATW
NR(2D noise reduction) Y/C,Y,C,OFF
Image adjustment Lightness/Contrast/Sharpness/Tone/Saturation
ATR OFF/ON(level adjustable)
BLC HLC/BLC/OFF
AGC ON/OFF
Day&Night Auto/B/W/Color
Privacy zones Off/On(4 areas)
Motion detection Off/On(4 areas)
Mirror function Horizontal mirror/OFF
Gamma 0.45(Default)
OSD menu
7 kinds of language
(English/Japanese/French/Spanish/German etc.)
Video output 1.0Vp-p Composite Video Output, 75 Ohm
IR distance 40-50m(48xÖ5)
Power supply DC12V± 10%
Power consumption(Max) 600mA/DC12V(IR ON)
Operation temp. -20°C ~ 50°C
