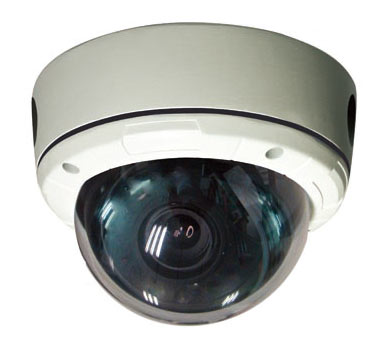

Beetle/2811D-E7 1/3" SONY EX-view HAD II CCD 700L

Présentation :

Beetle/2811D-E7 1/3" SONY EX-view HAD II CCD (960H), 700TVL, 2.8-11mm Korean DC Lens, IP66, lightning-proof 3D adjustable bracket, DC12V


Caractéristiques :

     - 1/3" SONY EX-view HAD II CCD (960H)- DSP:Sony Effio-E- Resolution: Color 700TVL- Min illumination: Color 0.06Lux/F1.2, B/W:0.006lux/F1.2- Motion detection,Privacy zones,BLC,HLC,CRR- Electronic shutter adjustable, Mirror function,White Balance,ATR,NR(2D noise reduction)- OSD menu,,Lightning proof, Vandal proof,IP66, 3D adjustable bracket, DC12V MODEL Beetle/2811D-E7 Pick-up device 1/3" SONY EX-view HAD II CCD (960H) Effective pixels NTSC:768*494,PAL:752*582 Resolution Color 700TVL Min.illumination Color 0.06Lux/F1.2, B/W:0.006lux/F1.2 Scan system 2:1 interlace Sync system Internal/Line lock S/N ratio more than 50dB lens 2.8-11mm DC Angle of view 124.3°-30.2° Electronic shutter AUTO(1/60(1/50)~1/100,000) /FIXED/MANUAL White balance MANUAL/USER1/USER2/PUSH LOCK/CRR/ATW NR(2D noise reduction) Y/C,Y,C,OFF Image adjustment Lightness/Contrast/Sharpness/Tone/Saturation ATR OFF/ON BLC HLC/BLC/OFF AGC ON/OFF Day&Night Auto/B/W/Color Privacy zones Off/On(4 areas) Motion detection Off/On(4 areas) Mirror function Horizontal mirror/OFF Gamma 0.45(Default) OSD menu 7 kinds of language (English/Japanese/French/Spanish/German etc.) Video output 1.0Vp-p Composite Video Output, 75 Ohm Power supply DC12V± 10% Power consumption(Max) 200mA/DC12V Operation temp. -20°C ~ 50°C



Détails :

Marque  : CCTV
Code EAN  :

Sat Info Services n’est pas responsable des erreurs dans la documentation des produits.
